ExhibitPlus MainRodFinishingAndInstallation2Dec09 006

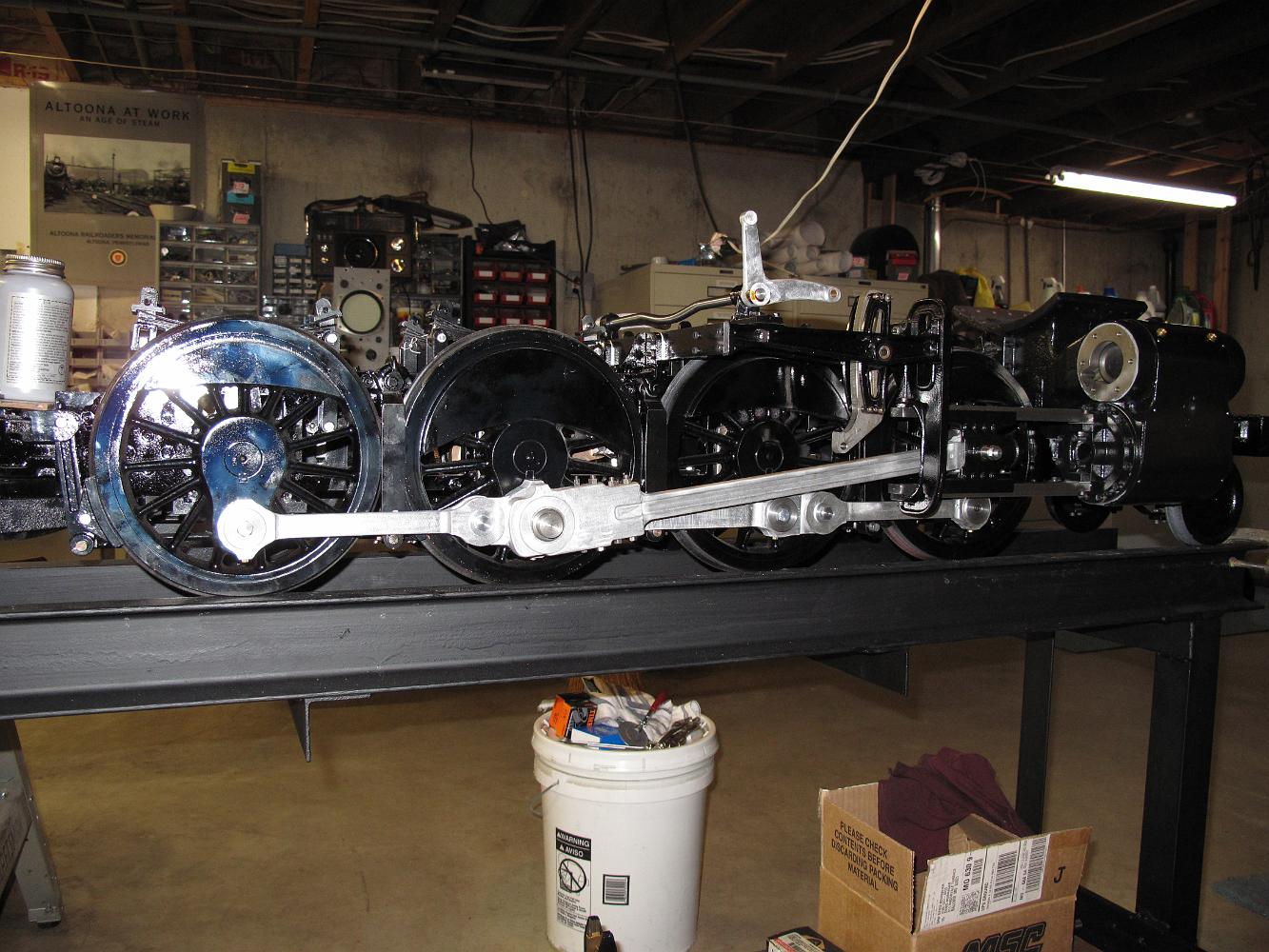

2-Dec-09 At the end of the night, all the rods are installed on the engine. Things are starting to move when the chassis is rolled!
