ExhibitPlus MachiningLeftSideBrakeHangers24June09 004

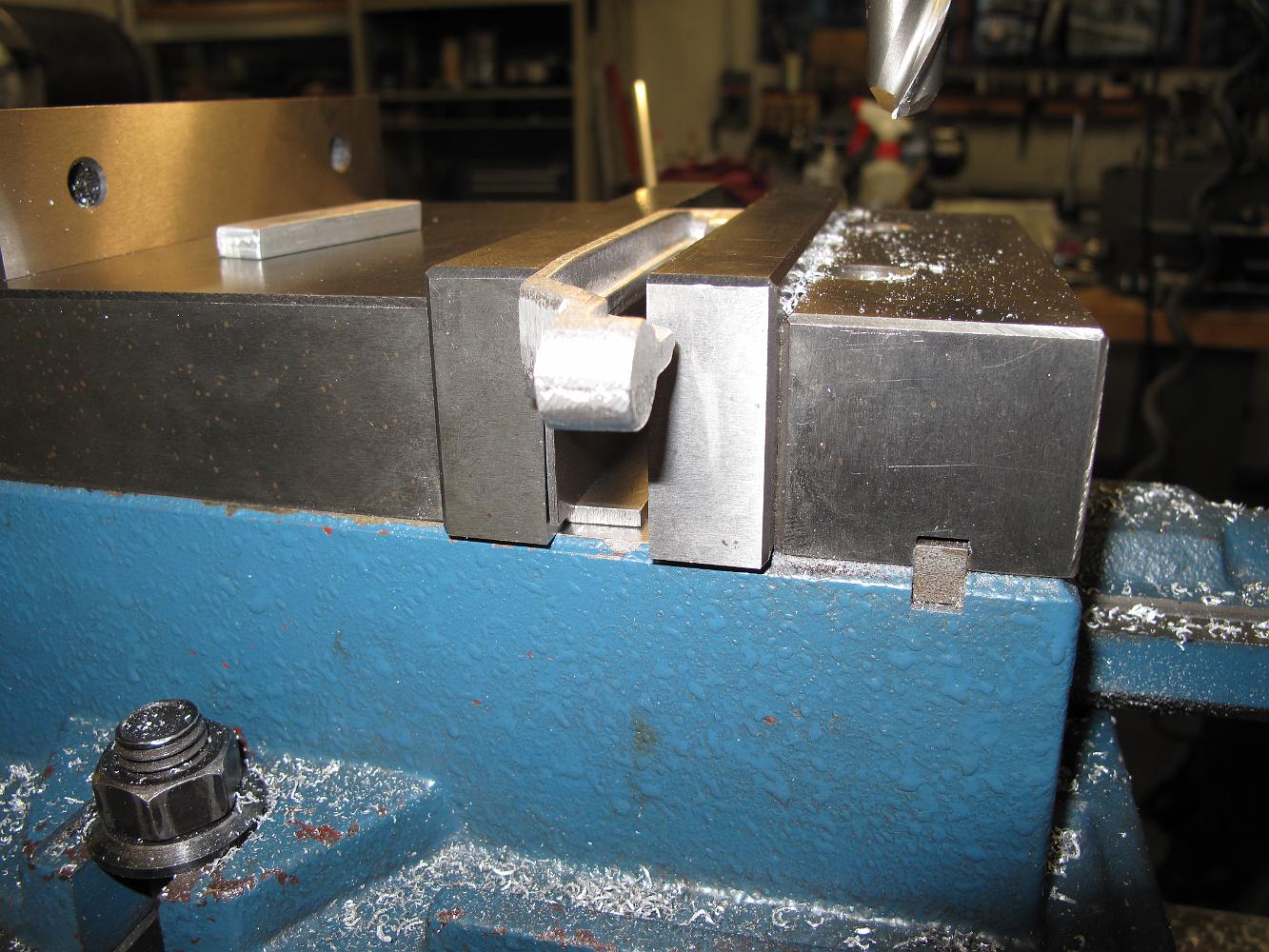

With very thin parallels hold the bracket in reference, another fragile clamping setup is made to mill the brakeshoe pocket.
