Neidrauer Adventures Photo Album » Building a Live Steam Locomotive - the Mikado Project » Section 9 - Locomotive Brakes
EngineBrakeParts13Feb08 001 EngineBrakeBeamParts6Feb08 004 EngineBrakeBeamParts6Feb08 003 EngineBrakeBeamParts6Feb08 001 EngineBrakeBeamParts9Feb08 005 EngineBrakeBeamParts9Feb08 004 EngineBrakeBeamParts9Feb08 001 EngineBrakeParts2Feb08 003 EngineBrakeParts2Feb08 002 EngineBrakeParts2Feb08 001 EngineBrakes30Jan08 003 EngineBrakes30Jan08 002 EngineBrakes30Jan08 001 EngineBrakes23Jan08 003 EngineBrakes23Jan08 002 EngineBrakes23Jan08 001 BrakeCylinder16Jan08 004 BrakeCylinder16Jan08 003 BrakeCylinder16Jan08 002 BrakeCylinder16Jan08 001
First page Previous page Index page Next page Last page
EngineBrakes23Jan08 001  [53 of 57]


Click to show/hide keyboard shortcut help
Keyboard shortcuts are active:

RIGHT arrow - next page
LEFT arrow - previous page
Page Up - index page
HOME - first page
END - last page
ESC,S,s - toggle start/stop slide show
ExhibitPlus EngineBrakes23Jan08 001

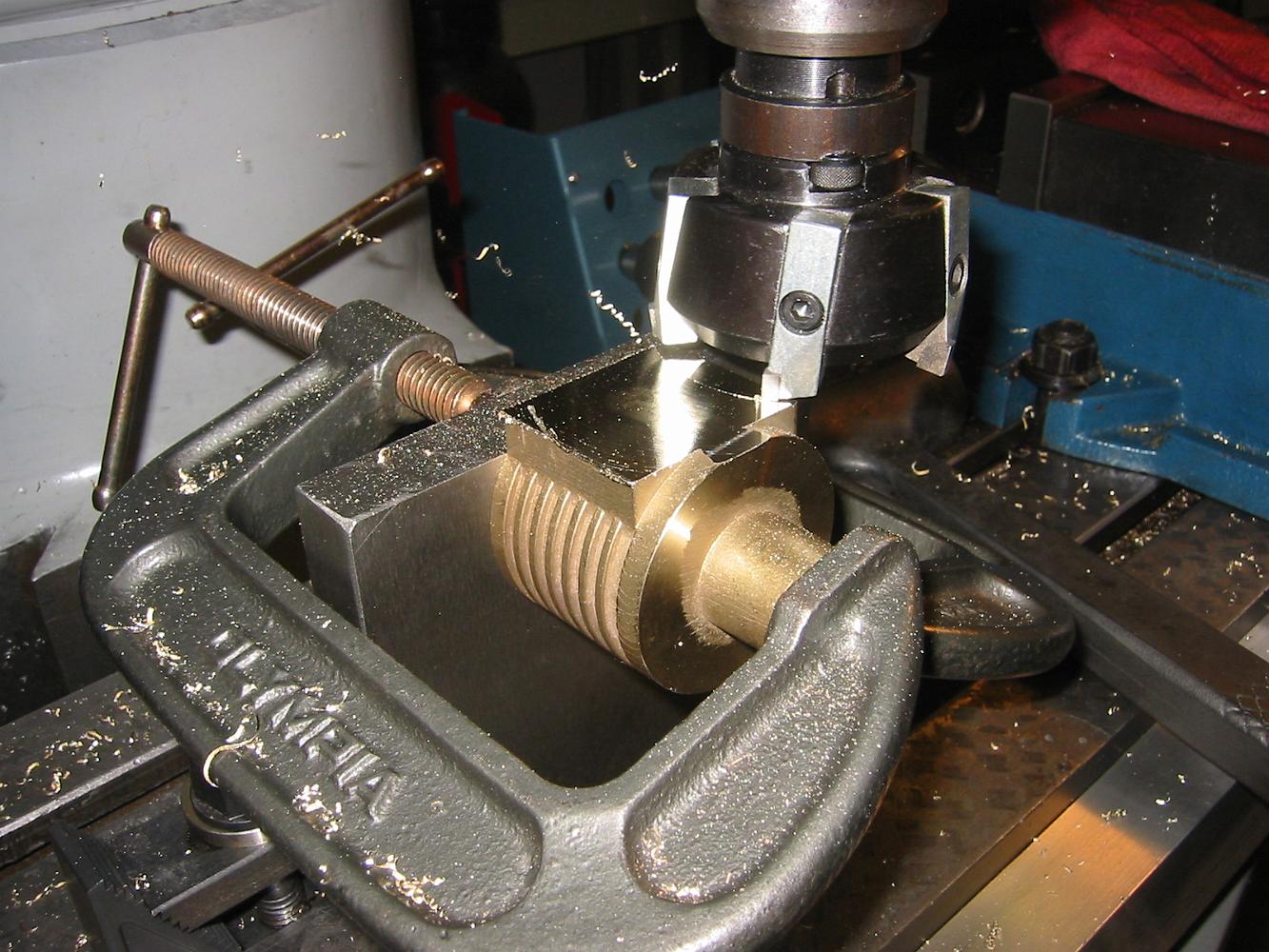

23-Jan-08 Cutting the mounting boss on the brake cylinder using the angle-plate and c-clamp setup. The finished height of the boss was based on the centerline of the cylinder. now how it is possible to clamp it and measure the centerline at the same time?? It seemed like a simple set up - make the inside of the cylinder the same height as the top of the angle-plate and calculate the height from there. The alternative was to turn a close-fitting boss mounted on the angle-plate, indicate the centerline of the boss, then press and clamp the cylinder onto the boss. A bunch more work the second way.
