ExhibitPlus EngineBrakeShoes20Feb08 006

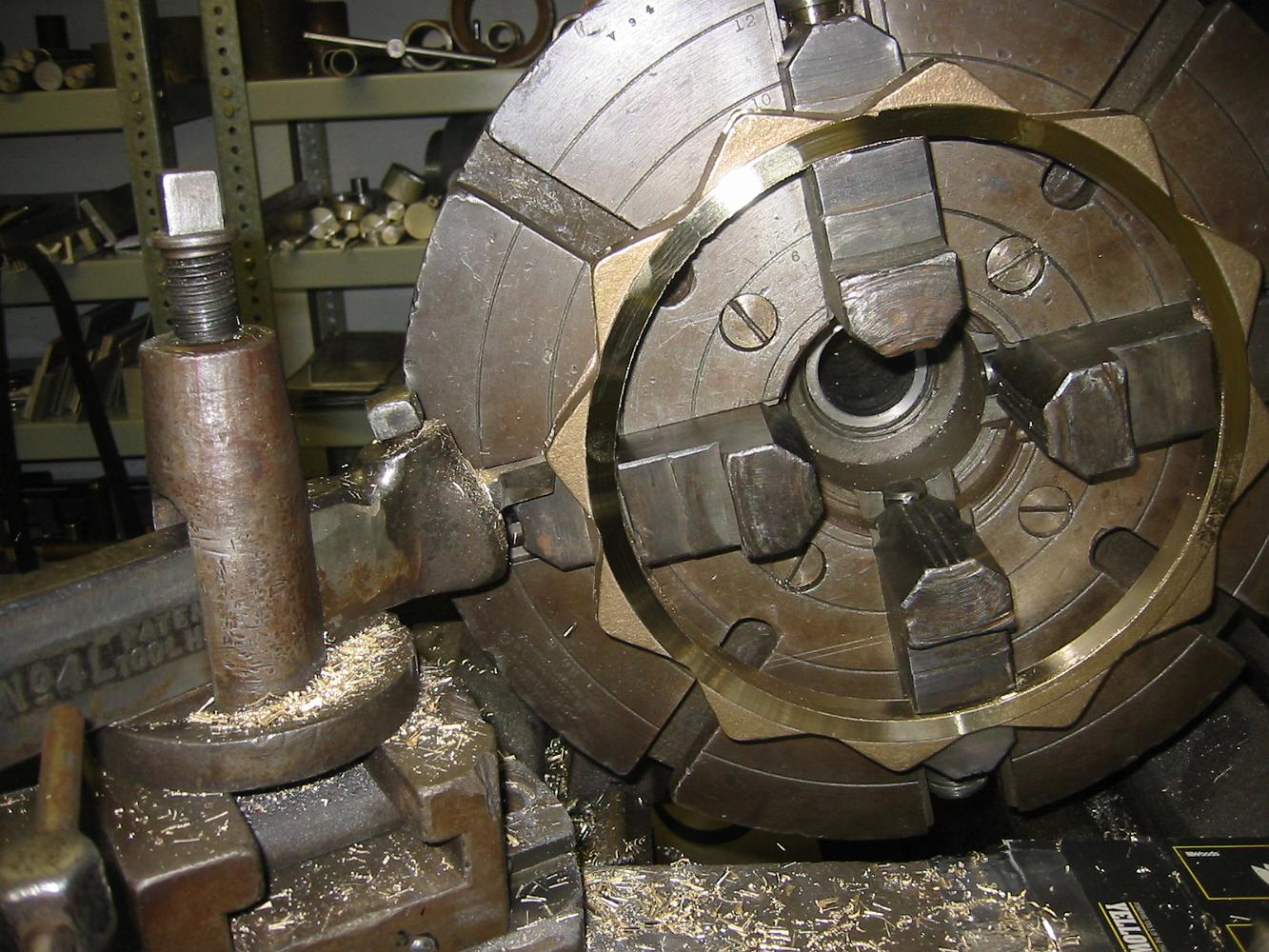

With the custom tool mounted in the left-hand tool holder, gibs tightened down on the compound and cross-compound, we plunge into the end of the ring of shoes to take a 1/4" wide cut. The result sounds like a small machine gun of interrupted cuts with the occasional 'Bang!' when the cutter digs in hard.
