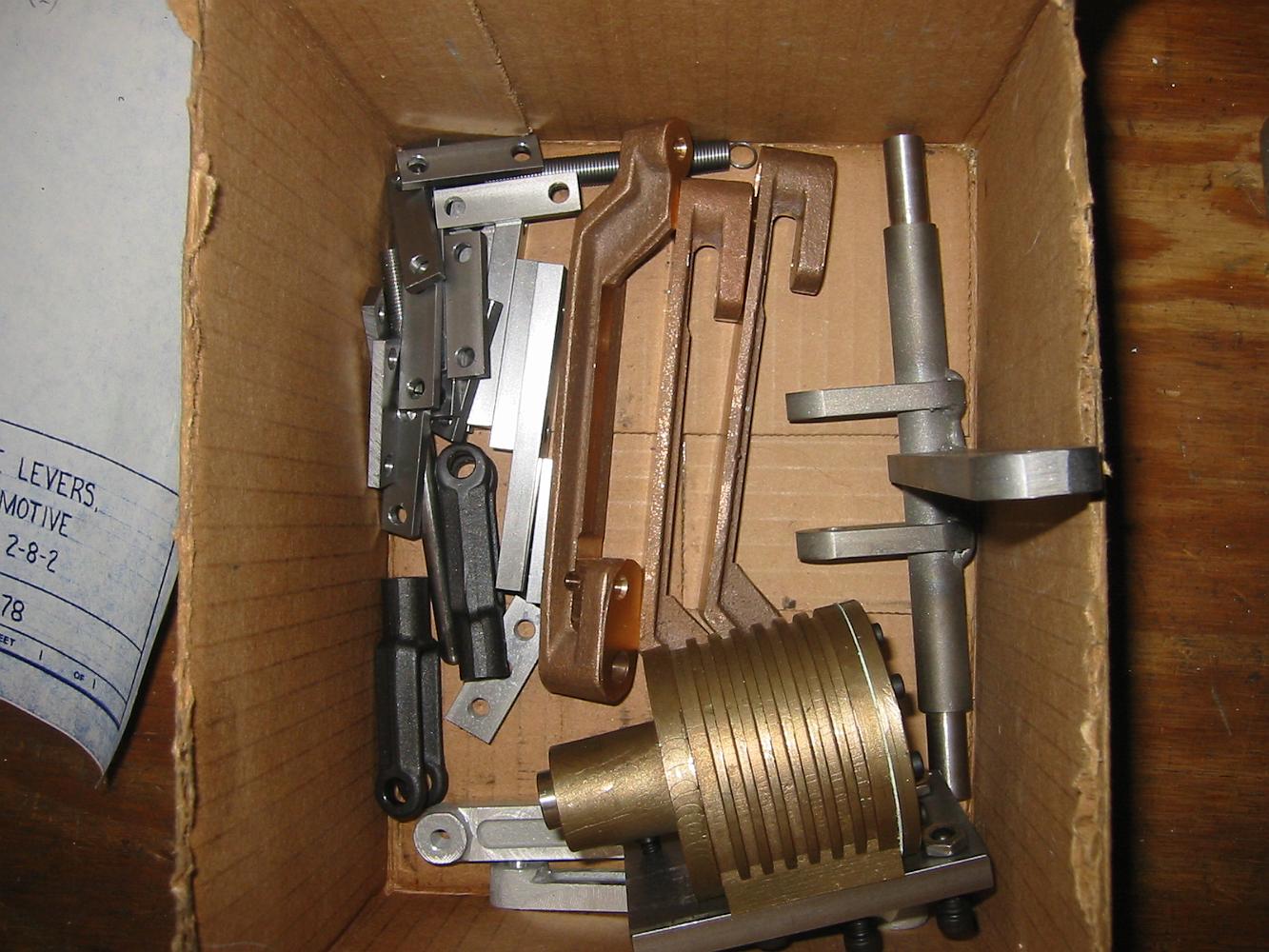

13-Feb-08 A box of finished brake parts. The brake cylinder/piston has had the O-ring installed, lubed with plumbers pure silicone grease, gasket cut and installed.
