ExhibitPlus BrakeCylinder16Jan08 002

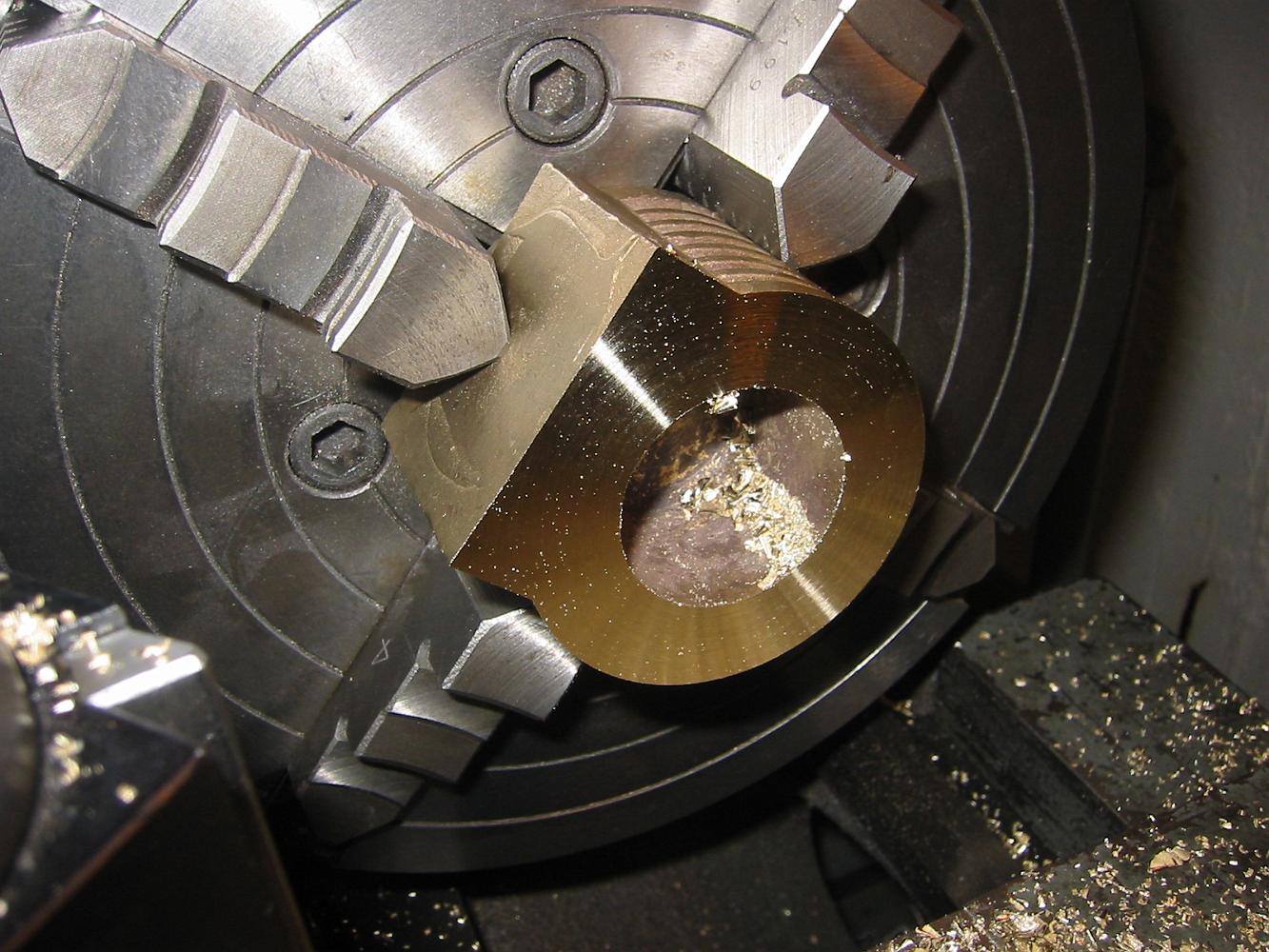

Turning the cylinder around and re-chucking in the 4-jaw, we complete facing the cylinder to size and prepare to bore the inside.
