ExhibitPlus ExhaustManifoldMoreWork5August09 005

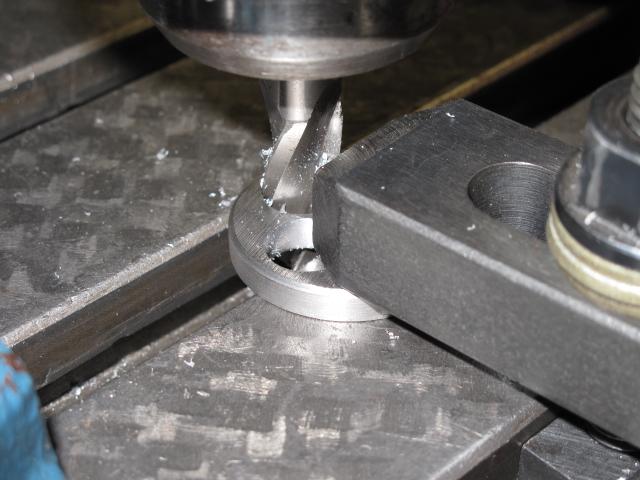

Using a 1/2" 1-degree tapered endmill to enlarge the holes. This should make it easier to assemble the piping.
