ExhibitPlus ExhaustManifoldFabrication20July09 003

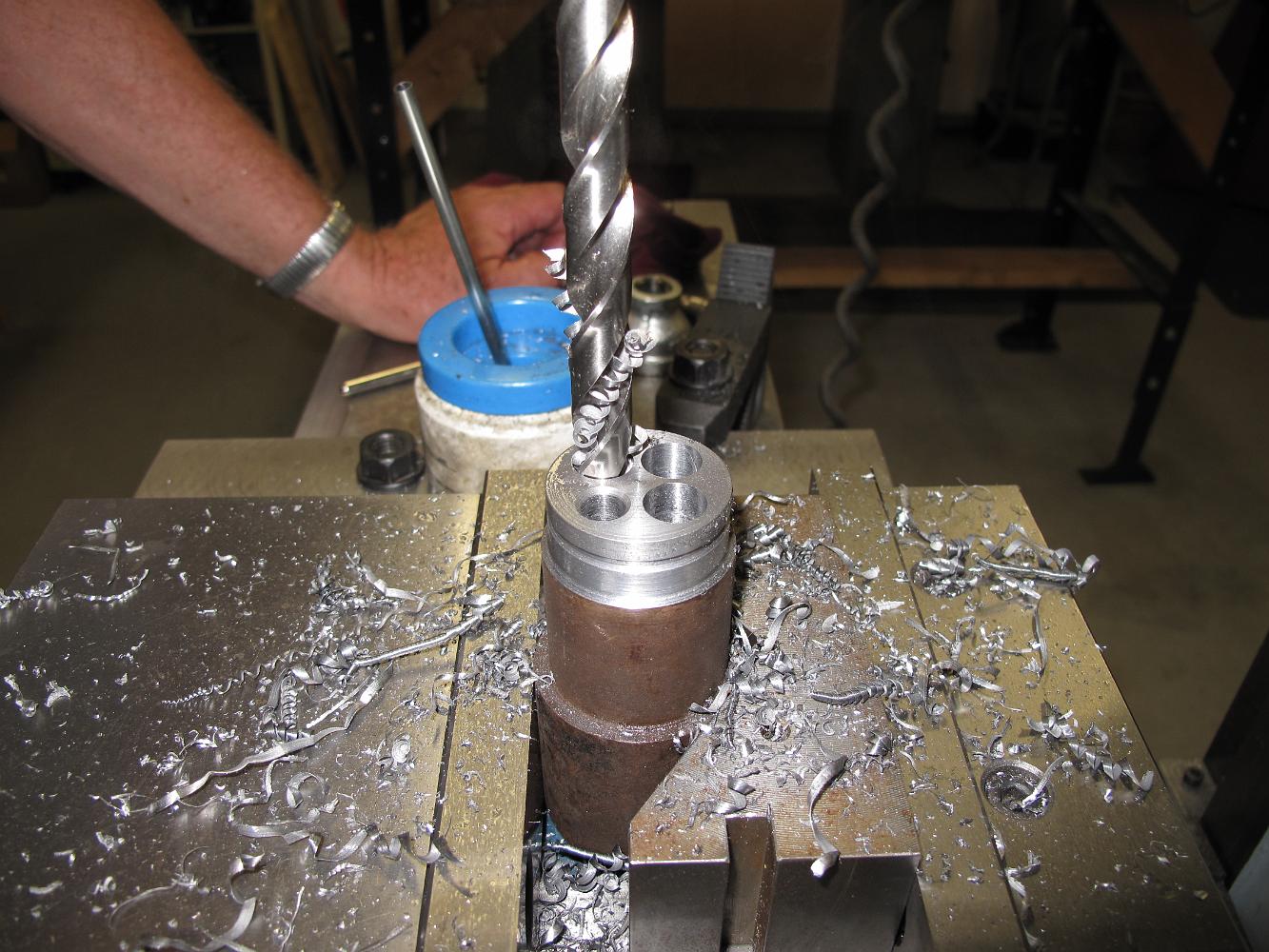

Driling 1/2" holes in the adapter plate. After this step, the stock was put back in the lathe and using a parting tool, two plates were made from this stock.
