ExhibitPlus CylinderWrapperWork26Aug09 003

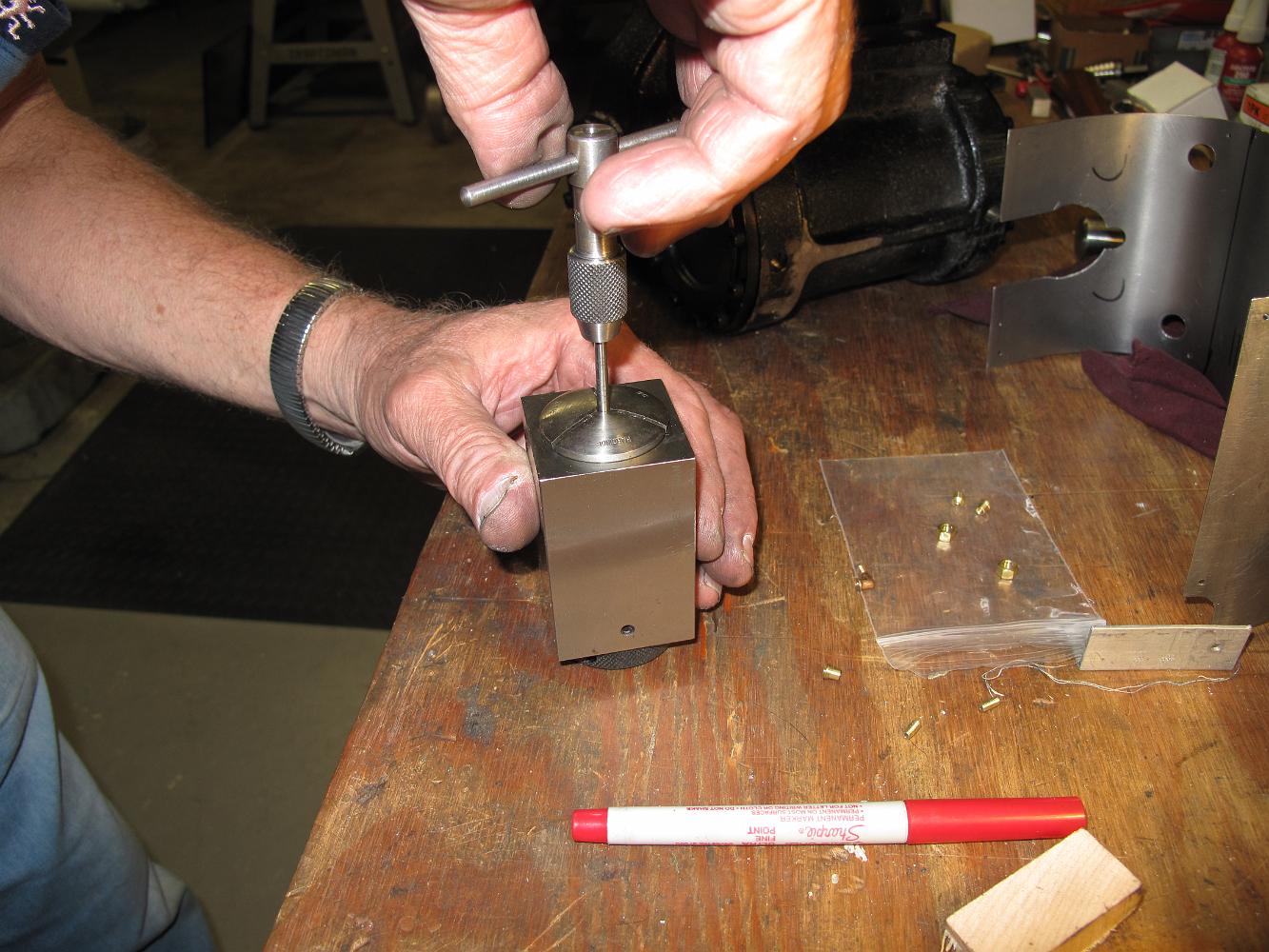

Tapping a 1/8-56 MTP fitting for the oil line. We used a collet to hang onto the tiny part.
