ExhibitPlus EquilizingArmsInSteel5Mar08 003

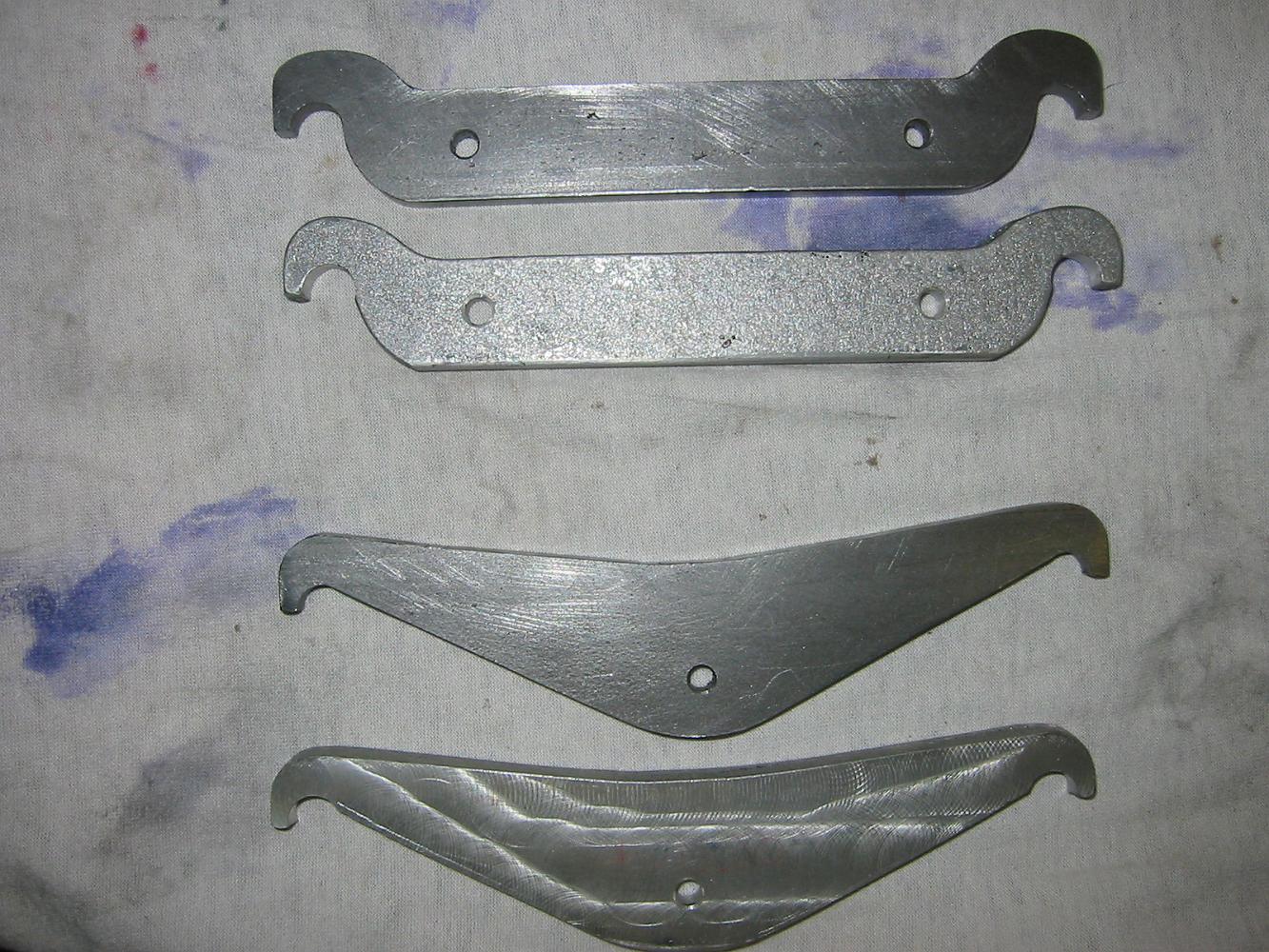

12-Mar-08 Cross-Equilizers re-made in steel. The cast aluminum ones were fine, but I was not happy about using aluminum in this assembly - I plan to add more weight to the frame, these components will have to take the additional weight. I felt better re-making them in steel.
