ExhibitPlus ValveGear3Dec08 001

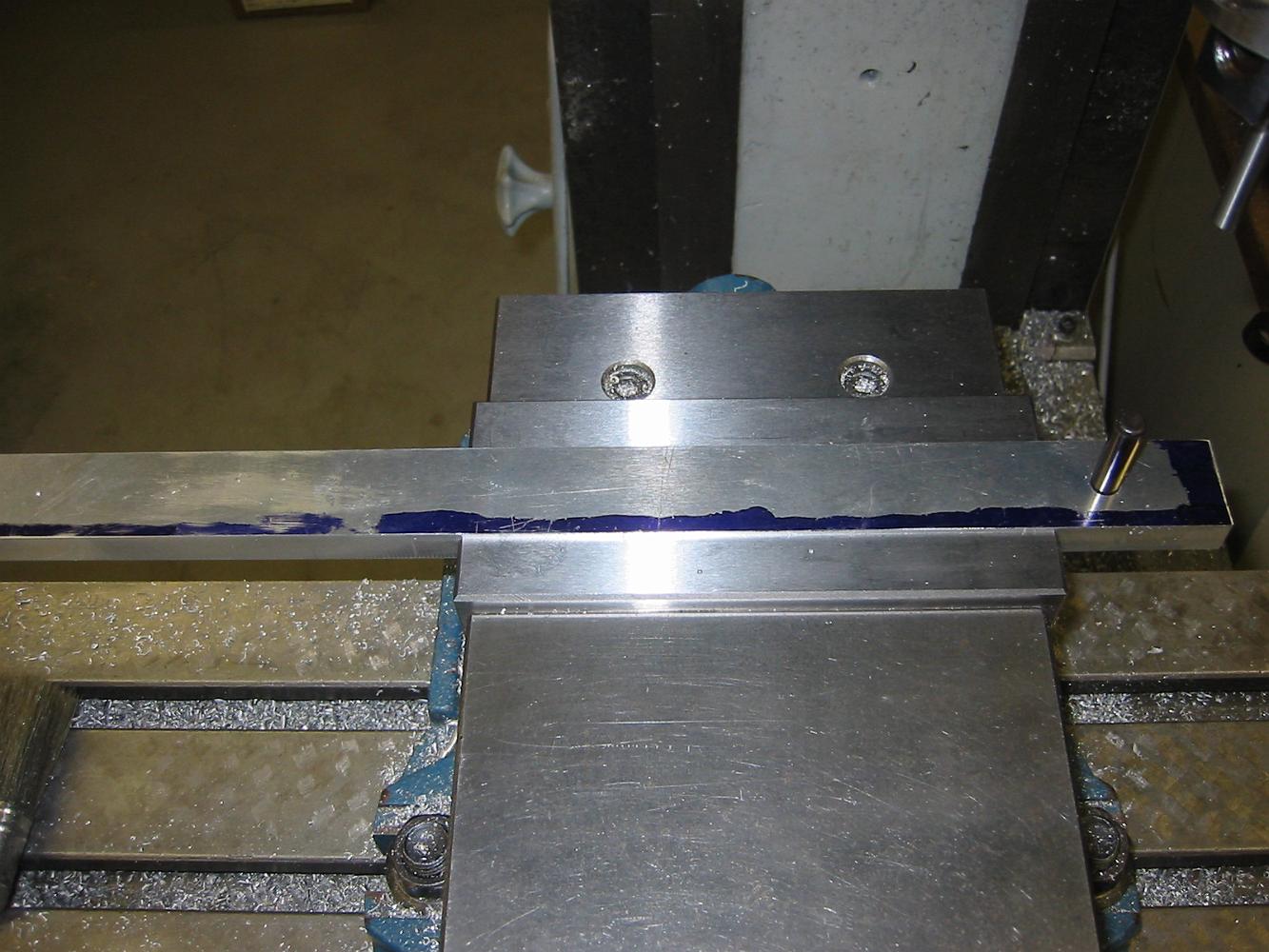

3-Dec-08. To accurately lay out the holes for the Radius Rod and Eccentric Rod, we build a drill fixture. using a piece of aluminum tooling plate, we machined the top and bottom clamping side parallel, then drilled, bored and pushed a dowel pin in which exactly fits the un-bushed hole in the radius rod.
