ExhibitPlus NewTumblerShaftJuneJuly2010 018

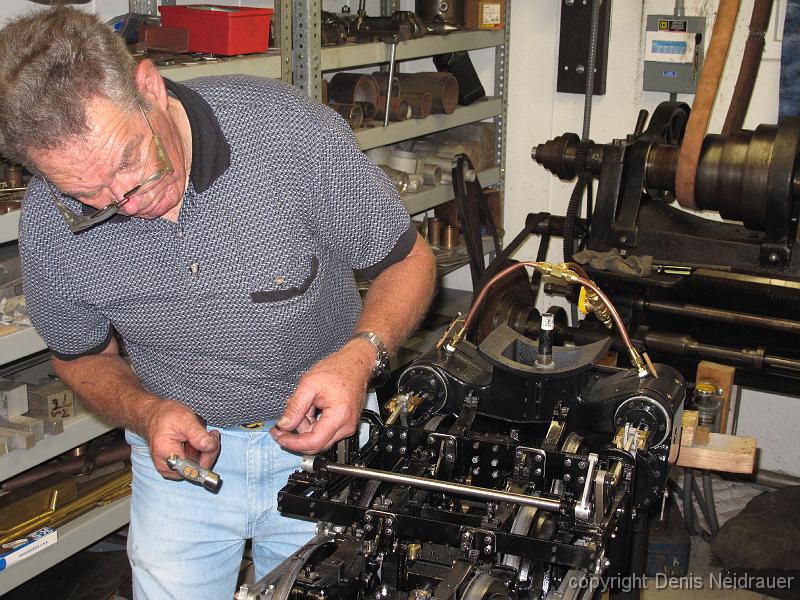

7-July-10 Bill finishes installing the new 1/2" tumbler shaft on the engine. Testing on air showed no movement of the lifting arms on either side, but little change in engine timing.
