ExhibitPlus NewTumblerShaftJuneJuly2010 006

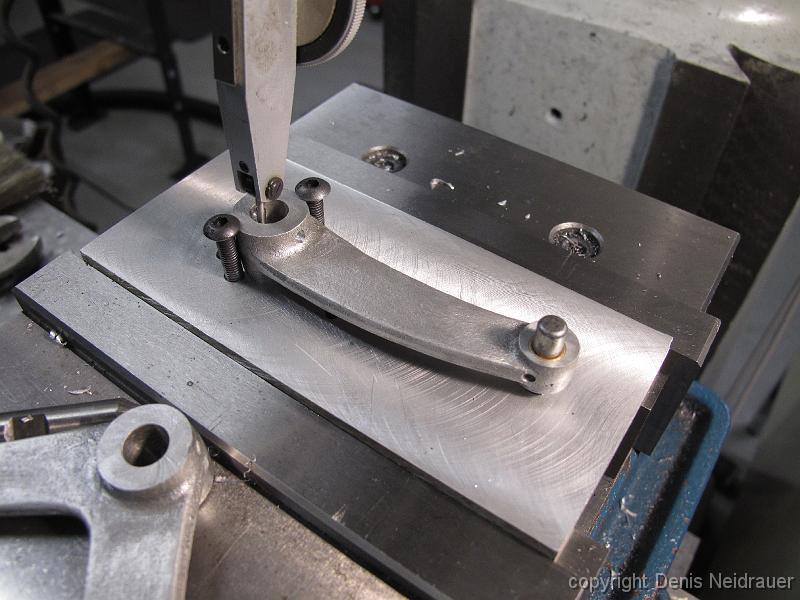

A fixture to hold the already machined lifting arms. We must not move the centerlines of the hole when boring out the tumbler shaft boss for the new, larger shaft.
