ExhibitPlus MoreMikadoFrameWork17Mar05 001

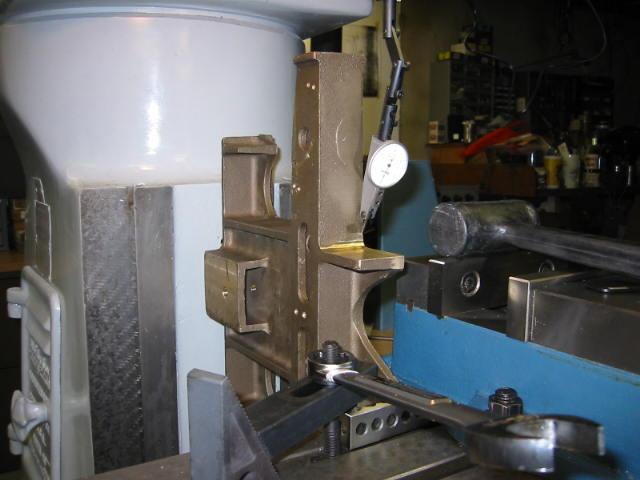

A challenging setup, machining the tailpiece cradle. We are trying to make the 'ears' on this piece parallel and the correct width for the side rails to bolt to.
