ExhibitPlus MachiningMikadoPedastlesBinderEars8Dec04 001

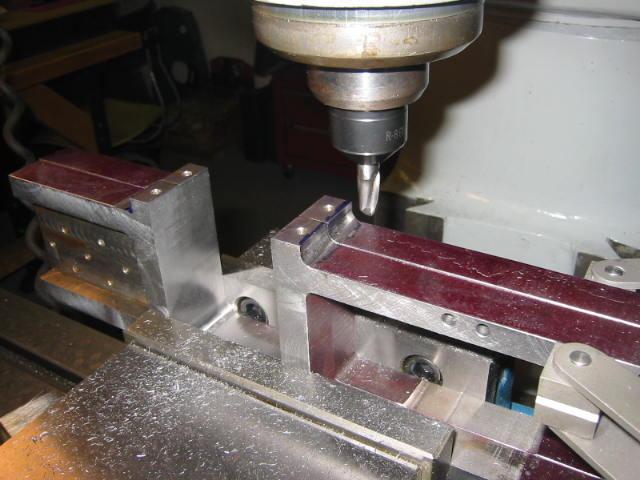

8-Dec-04 Machining the pedestal binder ears to a uniform size. They all will end up small than what is shown on the print, and will different end for end, but will match left and right. I used a ball mill from a resharpened cutter my brother got for me.
