ExhibitPlus MachiningMikadoFrames24Nov04 005

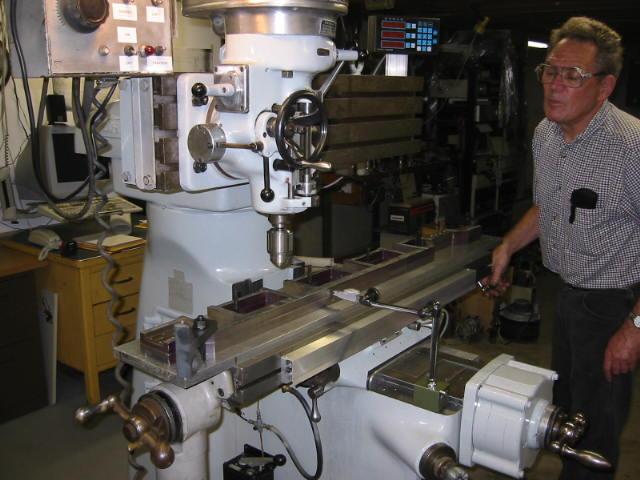

24-Nov-04 The sacrificial tool plate table has been bolted to the top of the table. Both frames are stacked on each other and have been pinned together to insure both remain identical during the machining process.
