ExhibitPlus Framework_Revisited22-Aug-07 001

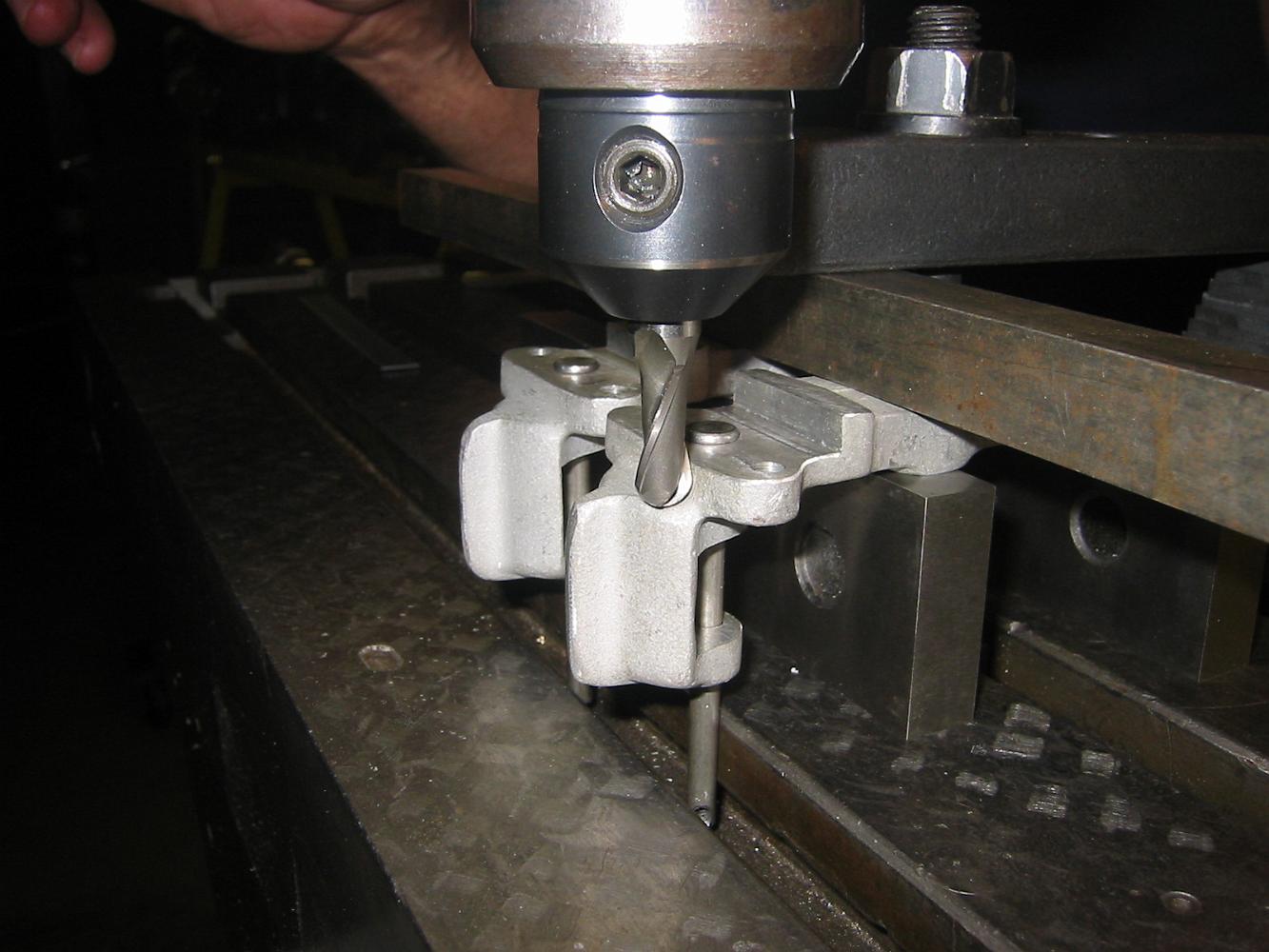

22-Aug-07 Two years after completing these brake hangers, we discover that the link support brackets, which bolt on above these middle bracket, won't fit because these parts stick up too much. It actually takes longer to lift the assembled frame, drop the number 2 and number 3 wheel sets to access and remove these brackets than it does to machine away the extra material.
